NBR/PVC Rubber Foam Insulation
Product Description NBR/PVC rubber foam insulation tube/pipe is made from the nitrile-butadiene rubber (NBR) and polyvinyl chloride(PVC) as main raw material and other high quality auxiliary materials through foaming, which is closed cell elastermic material ， fire resistance, UV-anti and...
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Product Description
NBR/PVC rubber foam insulation tube/pipe is made from the nitrile-butadiene rubber (NBR) and polyvinyl chloride(PVC) as main raw material and other high quality auxiliary materials through foaming, which is closed cell elastermic material，fire resistance, UV-anti and environmental friendly. It can be widely used for air condition, construction, chemical industry, medicine, light industry and so on.
Property | Test Value
|
Density range | 50~110kg/m³ |
Temperature range | -40－+110℃ |
Fire rating | Class 0, Class 1 |
Oxygen index | ≥33% |
SDR | ≤65 |
Thermal conductivity in average tempreture | -20°C ≤0.031w(m.k) 0°C ≤0.033w(m.k) 40°C≤0.037w(m.k) |
Water vapour resistance factor | ≥10000 μ |
Water absorption ratio in vacuum | ≤10% |
Dimension stability 150°C ±3°C, 7d | ≤10 |
Ozone resistance 200h | Good, not cracking |
Compress resilience ratio |
≥70% |
Aging resistance | 150 hours, slight wrinkles, no cracks, holes or distortion |
Dimensions | Pipes/tubes are in 1.83 mtr to 2 mtr long, or other customize. Sheet in rolls 1.0 mtr and 1.2 mtr width, with thickness from 3mm to 40mm.
|
Tips:
1) . R value is thermal resistance, it can be get from this formula: R=d/k.
"d" is thickness of foam material ( unit is meter), " k" means coefficient of thermal conductivity .
If our NBR foam insulation is 0.0356 w/(m.k), thickness is 0.025m.
So our R value is R=d/k=0.702 2).
2) . R=(rzloge(r2/rl)/k
Standard Size for NBR/PVC rubber foam insulation tube:
Thickness | 6mm | 9mm | 13mm | 16mm | 19mm | 25mm | 32mm |
Inner Dia | From 1/4” to 4” | ||||||
Length | 1.83m/ 2.0m /3.0m / or other length | ||||||

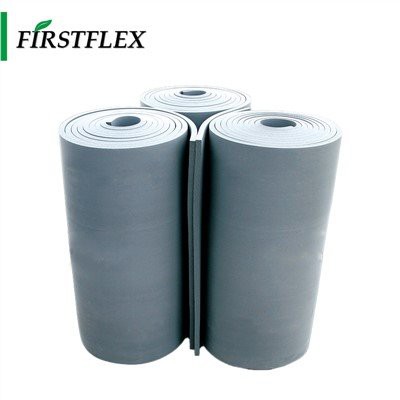

Standard Size for NBR/PVC rubber foam insulation sheet /roll:
Thickness | 6mm | 9mm | 13mm | 16mm | 19mm | 25mm | 32mm |
Length | 30m | 20m | 14m | 14m | 10m | 8m | 6m |
Width | 1.0m/ 1.2m /1.5m | ||||||
