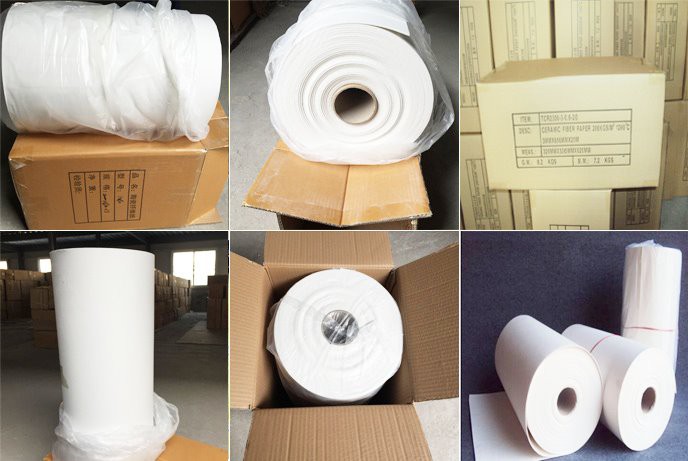

Ceramic Fiber Insulation Paper

Specifications:

(1220) 610*60000*1mm;

(1220) 610*30000*2mm;

(1220) 610*20000*3mm;

(1220) 610*15000*4mm;

(1220) 610*12000*5mm;

Product Description of Ceramic Fiber Insulation Paper:

The ceramic fiber paper is manufactured by refractory fiber with high purity which is used in high-temperature insulating fields. The advance manufacturing technology makes the distribution of fiber be very even and the paper's thickness and storage can also be controlled strictly. It is made of refractory ceramic fiber with a little bond which is selected scientifically and controlled strictly. The bond will be completely burnt during the use.

Advantages of Ceramic Fiber Insulation Paper:

Excellent Thermal Insulation: Ceramic fiber insulation paper provides outstanding thermal insulation, with low thermal conductivity. It effectively minimizes heat transfer, making it ideal for high-temperature applications, such as in furnaces, kilns, and ovens.

High Temperature Resistance: This type of insulation paper can withstand extremely high temperatures, often up to 2300°F (1260°C) or more, without deforming or degrading. It maintains its structural integrity and insulating properties even under severe heat conditions.

Low Heat Storage: Ceramic fiber insulation paper has low heat storage capacity, meaning it heats up and cools down quickly. This characteristic is valuable in applications where rapid temperature changes are required.

Lightweight and Flexible: Ceramic fiber insulation paper is lightweight and flexible, making it easy to handle, cut, and install. Its flexibility allows it to conform to irregular surfaces and intricate shapes, making it suitable for various thermal insulation applications.

Chemical Resistance: Ceramic fiber insulation paper is resistant to most chemicals, acids, and alkalis. It does not react with common industrial chemicals, ensuring its durability and performance in harsh environments.

Low Thermal Expansion: It has low thermal expansion properties, meaning it retains its shape and dimensions even at high temperatures. This characteristic prevents cracking and ensures the long-term integrity of the insulation.

Energy Efficiency: By effectively insulating high-temperature equipment, ceramic fiber insulation paper helps improve energy efficiency. It reduces heat loss, leading to lower energy consumption and operational costs in industrial processes.

Fire Resistance: Ceramic fiber insulation paper is inherently fire-resistant, making it a safe choice for applications where fire safety is a concern. It does not contribute to the spread of flames or release toxic gases when exposed to fire.

Sound Absorption: In addition to thermal insulation, ceramic fiber insulation paper also provides some degree of sound absorption. It can help reduce noise levels in industrial environments, improving workplace safety and comfort.

Versatility: Ceramic fiber insulation paper is versatile and finds applications in various industries, including metallurgy, petrochemical, ceramics, and aerospace. It is used for insulation in furnaces, boilers, pipes, and other high-temperature equipment.

Application of Ceramic Fiber Insulation Paper:

Insulation in Furnaces and Kilns: Ceramic fiber insulation paper is widely used to insulate the walls, doors, and roofs of furnaces and kilns in industries such as metalworking, glass production, and ceramics. It helps retain heat, improves energy efficiency, and ensures uniform temperature distribution inside the furnaces and kilns.

Gasket and Sealing Material: The flexibility of ceramic fiber insulation paper allows it to be used as gaskets and seals in high-temperature applications. It provides a heat-resistant barrier between joints, preventing heat loss and maintaining airtight seals in equipment like boilers, ovens, and industrial heaters.

Expansion Joints: Ceramic fiber insulation paper is used in expansion joints and thermal barriers in applications where materials need to expand and contract due to temperature fluctuations. It helps absorb thermal expansion and prevents structural damage in pipelines, ducts, and other systems.

Wrapping and Lining Material: It is used as a wrapping material for pipes and equipment that carry hot substances. Additionally, it serves as a lining material in industrial processing equipment, protecting the internal components from extreme temperatures and ensuring efficient heat retention.

Automotive Industry: Ceramic fiber insulation paper finds applications in the automotive industry, particularly in exhaust systems. It is used as a heat shield or thermal barrier to protect sensitive components from the high temperatures generated by exhaust gases.

Soundproofing: Due to its sound-absorbing properties, ceramic fiber insulation paper is used for soundproofing applications in industrial settings. It helps reduce noise levels by absorbing and dampening sound waves, enhancing the working environment.

Fire Protection: Ceramic fiber insulation paper is utilized in fire protection systems, including fire doors and fire-resistant curtains. It acts as a heat-resistant barrier, preventing the spread of flames and protecting structures and people during a fire.

Foundry and Metal Casting: In foundries, ceramic fiber insulation paper is used as part of the mold insulation system. It helps maintain the mold's shape and withstand the high temperatures encountered during metal casting processes.

Aerospace and Aviation: Ceramic fiber insulation paper is used in aircraft and aerospace applications, where lightweight and heat-resistant materials are crucial. It can be found in components such as engine insulation, ensuring thermal stability in extreme conditions.

Home Appliances: In household appliances like ovens, ceramic fiber insulation paper is used for thermal insulation, contributing to energy efficiency and safety by preventing heat loss and maintaining the desired cooking temperature.

Our Services :

1). 7*24hours service.

2). Reply email in 10hours.

3). 10 production lines for short delivery time.

4). Support visit factory.

Technical Parameters of Ceramic Fiber Paper:
